Tubular Front Control Arms (Choose Style)

Tubular Front Control Arms (Choose Style)

$450.00$950.00

In stock

$450.00$950.00

Drag Race Tubular A-Arms NOT For Street Use

Choose Vehicle / Style Below

P/N: N/A Brand:
Clear
Compare Compare

Description

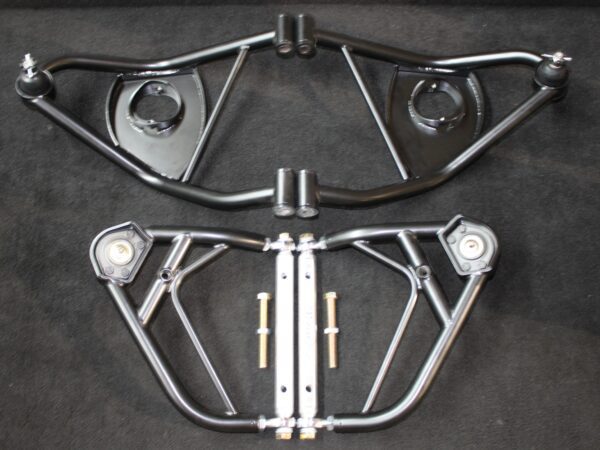

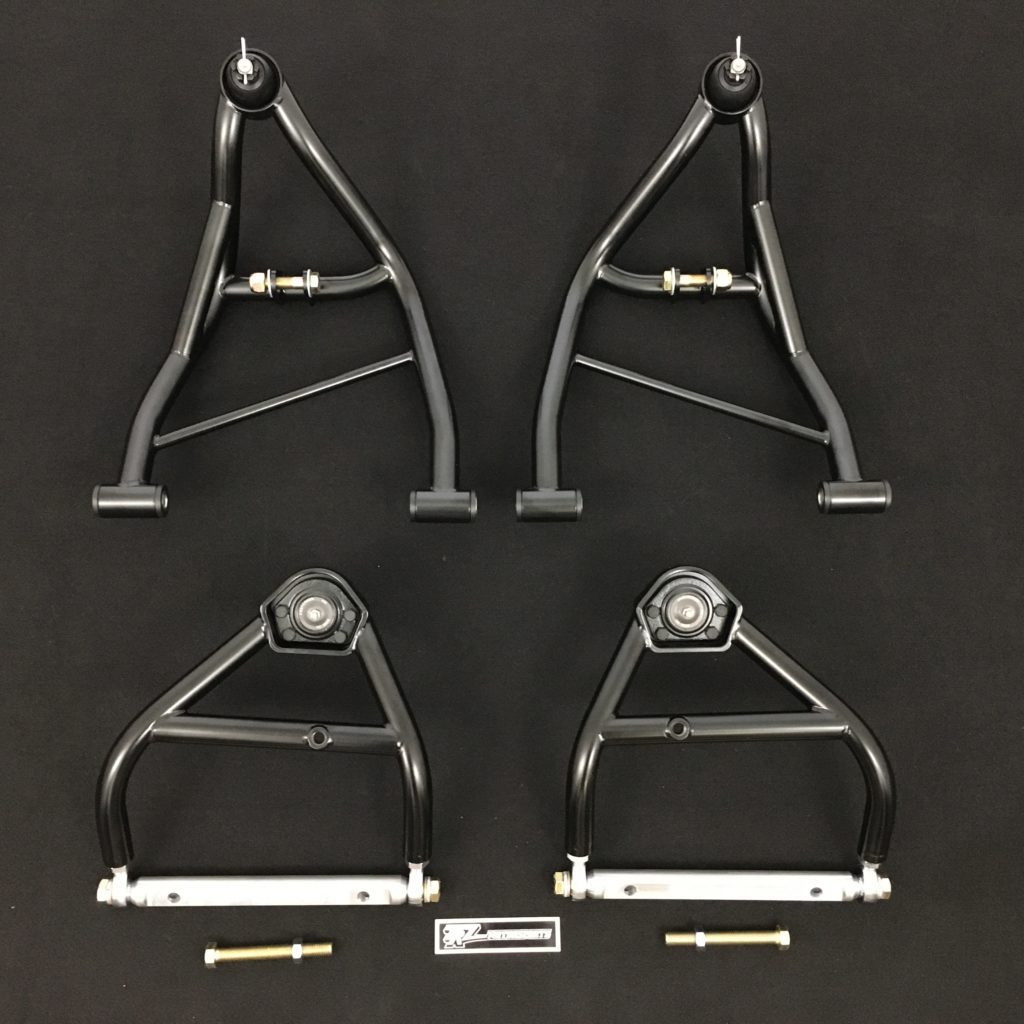

  • Constructed using TIG-welded chrome-moly tubing
  • Includes:  Ball Joints, Bushings on the Lowers, and Chrome-Moly Rod-Ends on the Uppers.
  • Built-in 6 to 7 Degrees of Positive Caster (Complete Kit / Uppers or Lowers alone may not achieve these numbers and could have caster and camber issues)
  • Designed to Replace Stock Control Arms
  • Reduces Weight by up to 15lbs Per Side (Complete Kit)
  • All Upper Control Arms are “PRO Series” – Includes Rod-End Attachment to Billet Cross-Shafts
  • Stock Spring Style Lowers Accept Factory Type Spring and Shock Setups
  • Stock Spring Lowers Have Dropped Spring Perches, This Is Due to Some Coil-Springs Being Taller Than Stock
  • Depending On Your Spring Choice – Stock Spring Lowers MAY Lower The Front-End Between 1.5″ & 1.75″ Compared to Stock
  • Coil-Over Style Lowers Will Accept All 1″ Wide x 1/2″ ID Bearing Style LOWER Shock Mounts (for existing QA1 shocks, use COM8T-102PK bearing kit for this)
  • 316-Coil-Over Lowers Will Lower The Front-End Roughly 2″ Compared to Stock
  • 319 / S10 Coil-Over Lowers Will Lower The Front-End Between 2″ & 3″ Compared to Stock
  • Uppers Include Travel Limiters to Control Front-end upward Travel and weight transfer
  • Designed for Drag Race Applications Where Spindle Caster Can Range from 0 to 10 Degrees
  • Designed for Drag Racing Only – NOT FOR STREET USE (TRZ A-arms do NOT have sway bar tabs as these are NOT for street use)

Additional information

Weight 28 lbs
Dimensions 21 × 17 × 11 in
Vehicle Type

C2/C3 Corvette, 64-72 Chevelle (A-Body), 67-69 Camaro/Firebird & 68-74 Nova, 70-81 Camaro / Firebird & 75-79 Nova, 77-96 Impala / Caprice (B-Body), 78-88 Malibu (G-Body), 82-02 S10 & Blazer (2WD)

Location / Style

Uppers Only, Stock Spring Lowers Only, Coil-Over Lowers Only, Stock Spring Style Complete Kit, Coil-Over for Camaro Style Spindle Complete Kit (C2/C3), Coil-Over Style Complete Kit

Sort by Brand

TRZ Motorsports
