Billet Rear Upper Shock Mounts / Pair

Billet Rear Upper Shock Mounts / Pair


In stock


P/N: N/A Brand:
Compare Compare

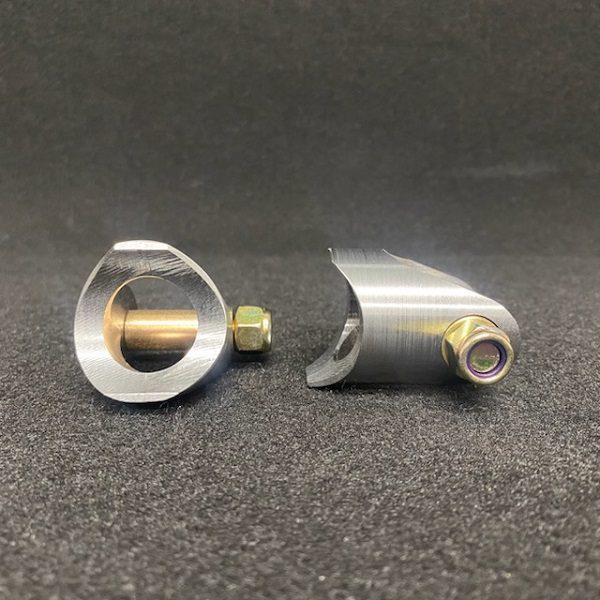

  • Billet 4130 chromoly rear upper shock mount clevis’s (price is for 1 pair)
  • CNC’d / 1 piece design is VERY lightweight and much stronger than conventional chassis tabs
  • 1.625″ Radius to fit 1.625″ (1-5/8″) tubing
  • Designed for use with 1″ wide x .500″ ID upper shock mount bearings
  • Includes bronze bushings to be pressed into upper shock mount bearings (converts them to a 3/8″ ID)
  • Includes (2) Billet 4130 shock mounts, (2) Bronze bushings, (2) Grade 8 bolts, (4) Grade 8 washers, (2) Grade 8 nylocks
  • INLINE is the bolt and mount radius inline with each other (i.e. mounting to a rear shock crossmember that mounts between the frame rails, side to side)
  • CROSS is the bolt and mount radius 90 degrees from each other (i.e. mounting to frame rail tubing that goes straight up & down or front to back)
  • See pics of both the INLINE and the CROSS style mounts in the drop-down menu when ordering
  • Can be used for a variety of other chassis mounts that are needed to mount to an 1-5/8″ tube (i.e. transmission crossmember mounts)

Additional information

Weight N/A
Dimensions N/A
Mount Type

Inline, Cross
