ARB Variable

Description

**** Choose your model car, the style mount, and the type of ARB in the drop down boxes when placing this order ****

Description of options below:

  • Chassis Mounted (GM Cars) ARB’s include a Chrome-Moly Cross-member that mounts between the frame rails or between the roll cage, and the ARB Mounts to this
  • Chassis Mounted (79 – 04 Mustang) ARB’s mount between the frame rails up against the floor pan with specialized ARB caps (TWIN TUBE NOT AVAILABLE FOR THIS)
  • Under Housing Mounted ARB’s include our Housing Mount Brackets that weld to your axle tube (Only Recommend this for cars with full exhaust / tail pipes)
  • Standard ARB’s use 1.625″ Chrome-Moly Tubing with CNC’d Billet Steel Arms (Good up to @ 1800 HP)
  • Twin Tube ARB’s use an inner 1.625″ Chrome-Moly Tube along with an outer 2.25″ Chrome-Moly Tube with CNC’d Billet Steel Arms (Good up to @ 3000 HP)

General ARB details below:

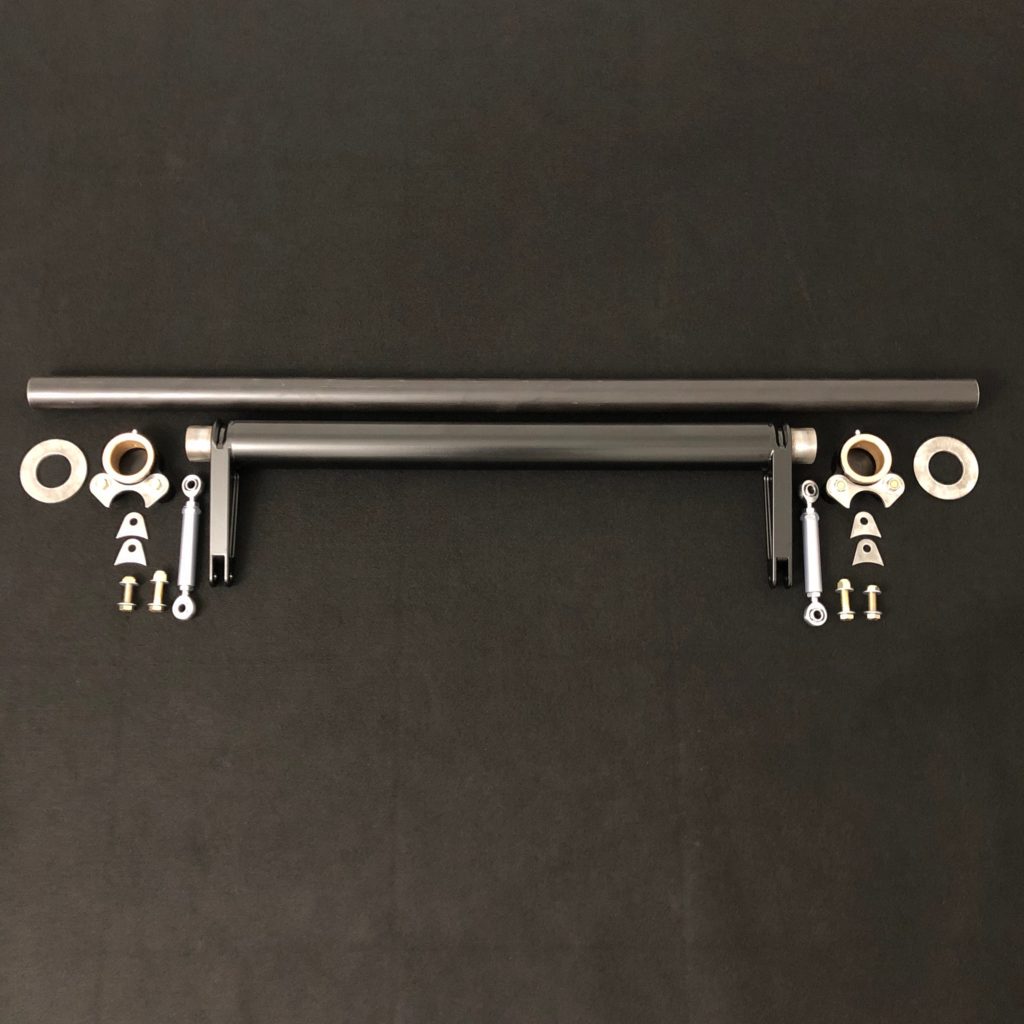

  • All ARB kits include the necessary mounting hardware, ARB Links, and the End Caps
  • An Anti-Roll Bar is designed to eliminate chassis twist so you can plant your power to the ground evenly between the rear tires
  • If you need a custom length ARB, we can do that as well (203-C-3 Custom ARB)

Additional information

Weight 15 lbs
Dimensions 47 × 9 × 5 in
Vehicle

63-67 Nova, 67-74 F/X Body, 64-72 A-Body, 70-81 F/X Body, 78-88 G-Body, 71-76 B-Body, 77-96 B-Body, 82-02 S10, 79-04 Mustang

Mount Style

Chassis Mount, Under Housing Mount

Single or Twin Tube

Single Tube, Twin Tube (+$100)
