Manual Brake Master Cylinders (Choose Size)

Manual Brake Master Cylinders (Choose Size)


In stock


Chrysler Style Manual Brake Master Cylinders

See Choices Below

SKU: N/A Brand:
Compare Compare


Strange Master Cylinders

  • 1.032″ Bore Master Cylinder for use with 1 or 2 Piston Front Brakes, 2 or 4 Piston Rear Brakes, or Rear Drums (Strange recommends a 5.5:1 ratio)
  • 1.125″ Bore Master Cylinder for use with 4 Piston Brakes on ALL 4 WHEELS (Strange recommends a 6.5:1 ratio)
  • Includes:  3/8″-24 x 4.2″ Long Threaded Pushrod (with locking grommet), Dust Boot, and 1/2″-20 Hardline Adapter Fittings
  • 1/2″-20 brake line holes with brass inverted flare seats
  • Pushrod stroke:  1.525″
  • Designed for 3/16″ brake lines
  • Note:  Silicon Brake Fluid is NOT Recommended according to Strange
  • Note:  Port CLOSEST to firewall (rear port on the master) flows the MOST volume
  • Must be bench bled before use

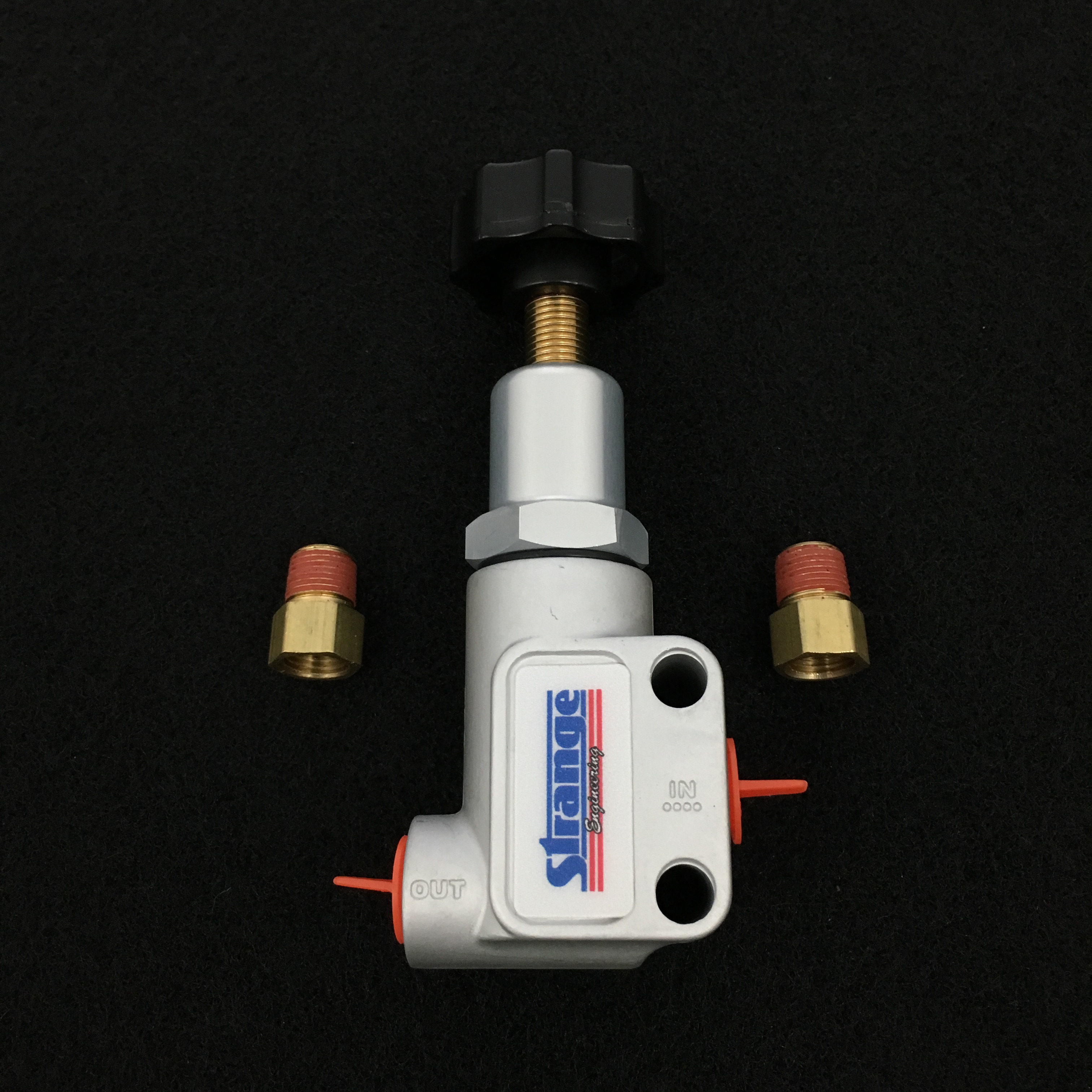

Strange Proportioning Valve

  • Knob-Type Adjustable Proportioning Valve
  • Allows less braking pressure to be applied to either the front or rear brakes by reducing line pressure
  • Includes: 1/8 NPT – 3/16 Hardline Inlet and Outlet Port Adapter Fittings

Choosing the Correct Master Cylinder and Manual Brake Tech

CLICK HERE For Stainless Steel Brake Lines

CLICK HERE For Manual Master Cylinder Adapters

Additional information

Weight 5 lbs
Dimensions 8 × 8 × 6 in
Brand / Type

Strange 1.032", Strange 1.125"

Add Proportioning Valve

No, Yes

Sort by Brand

Strange Engineering
