Description
TBM Drag Race Rear Brake Kits
4-Piston F3 Calipers with Revolution Rotors
All Rear Kits fit 5 x 4.5″, 5 x 4.75″ and 5 x 5″ bolt circles and allow the use of BOTH 1/2″ and 5/8″ studs.
All Rear Rotor Hats have multiple mounting configurations to accomodate a variety of ‘Brake Offsets’
TBM Rear Brakes DO NOT allow the use of ABS Reluctor rings in most Late Model Vehicles
Designed specifically to clear 15″ Inner Beadlocks

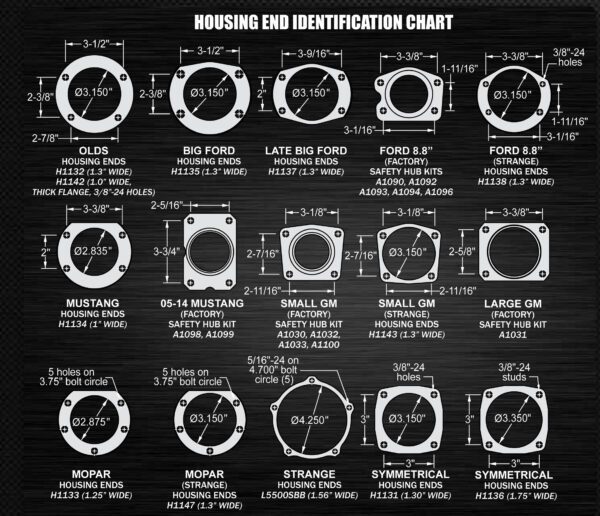

CLICK HERE For Housing End Identification
CLICK HERE For Stainless Steel Brake Lines
CLICK HERE For Manual Master Cylinders and Adapters
** Note – We may dropship out-of-stock items direct from TBM **
Additional information
| Weight | 33 lbs |
|---|---|
| Dimensions | 17 × 13 × 13 in |
| Housing End / Vehicle | Small Ford – H1134 / 2.835" I.D. – 2.625" Brake Offset, Early Big Ford – H1135 / 3.150" I.D. – 2.3325" Brake Offset, Early Big Ford – H1135 / 3.150" I.D. – 2.500" Brake Offset, Late Big Ford – H1137 / 3.150" I.D. – 2.500" Brake Offset, 86-93 Mustang 8.8 OEM w/ C-Clip Elims – 2.500" Brake Offset, Strange 86-93 Mustang 8.8 End – H1138 – 2.500" Brake Offset, 05-14 Mustang 8.8 OEM w/ C-Clip Elims – 2.585" Brake Offset, Small GM OEM End – 2.832" Brake Offset, Strange Small GM – H1143 / 3.150 I.D. – 2.832" Brake Offset, Symmetrical – H1131 / 3.150" I.D. – 2.832" Brake Offset, Symmetrical – H1146 / 3.350" I.D. – 2.832" Brake Offset, C5-C6 Corvette, C7 Corvette, 10-15 Camaro, 16-22 Camaro, 11-15 Cadillac CTS-V2, 2012 – Current Strange Floater |
| Sort by Brand | TBM Brakes |
