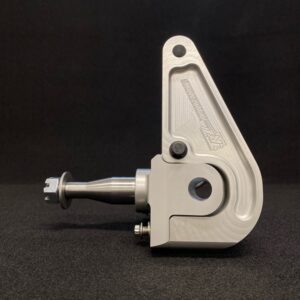

2″ & 3″ Drop BILLET Alum. Spindles (79-04 Mustang) / Spindle Mount

P/N: 326-MUS

$1,069.00

Clear

Description

  • CNC Machined (IN HOUSE) Billet Aluminum Spindle with Heat Treated Stainless Steel Spindle Pins
  • EXCLUSIVE 3-Piece Design.  No Welds or Seams!
  • Billet Aluminum Bolt-On Steering Arms Included
  • Steering Arms are designed for use with a 1/2″ Rod-End
  • Includes Hardware:  Castle Nuts, Keyed Washers, Cotter Pins, Steering Arm Bolts, and ARP Stainless Steel Caliper Bolts
  • Strut Mount Flange is 3/4″ (.750″) Wide – Factory Foxbody GT Mount
  • Designed for Drag Race Applications ONLY
  • Corrects Front Suspension Geometry and Installed Strut Height on Lowered Vehicles
  • Fits Aftermarket SPINDLE MOUNT Disc Brake Setups (NO HUBS): Strange Front Brakes, TBM Front Brakes
  • Fits Aftermarket HUB STYLE Disc Brake Setups (HUBS 5 x 4.5 Ford bolt pattern): Strange Front Brakes, TBM Front Brakes
  • Fits specific Baer SS4 Deep Stage Kits with 5 x 4.5″ (Ford) and 5 x 4.75″ (GM) Bolt Patterns Available – Call for more info and pricing.
  • WEIGHT:  4 lbs PER Spindle (8 Lbs per Pair) is SIGNIFICANTLY lighter than stock Fox / SN95 spindles !!
  • Will NOT use existing Mustang brakes that fit a factory spindle

NOTES BELOW:

  • Based on 1979-1993 Mustang Spindles using SN95 / New Edge Ball Joints
  • This design allows the use of these spindles with ALL commonly available ball joints
  • If you currently have Foxbody (1979-1993) ball joints, you will need a spacer below the castle nut (Included)
  • Adjustable A-arms are Highly Recommended
  • 1994-2004 Mustang may require a 1″ or more Narrowed A-Arm, depending on your existing Caster/Camber Plates
  • NOTE FOR SPINDLE MOUNT WHEELS ONLY: Based on Strange GT Strut which uses the large bearing (1.250″ and .750″) … NOT Anglia and NOT Strange Ultra Strut which use the small bearing

Steering Arm Lengths

  • Factory Length with 1/2″
  • Extended Length – Extended by 1-1/2″, Helps when steering rack is placed 2″ and further ahead of stock mounting location

Additional information

Weight 11 lbs
Dimensions 12 × 12 × 12 in
Vehicle Type

79-04 Mustang

Height

2" Drop, 3" Drop

Steering Arm

Factory Length, Extended Length
