Description

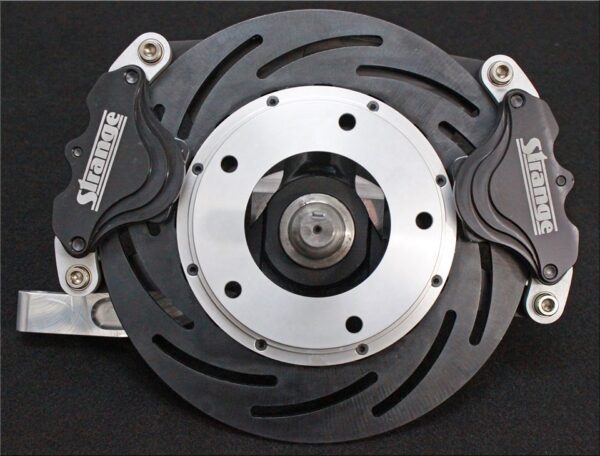

Strange Engineering Drag Race Front Brake Kits
These kits will reduce an average of 30# – 40# over your factory front brakes
NOTE – Some Late Model Kits Will Re-Use the Factory Hubs / This will be noted when selected
– Images may not be vehicle specific –
All GM Kits are shipped with 5×4.75″ Bolt Circle
All Ford Kits are shipped with 5×4.5″ Bolt Circle
**Please call if needing a cross-over bolt pattern**
CLICK HERE For Stainless Steel Brake Lines
CLICK HERE For Manual Master Cylinders and Adapters
Spindle Types
- Factory Disc / Drum

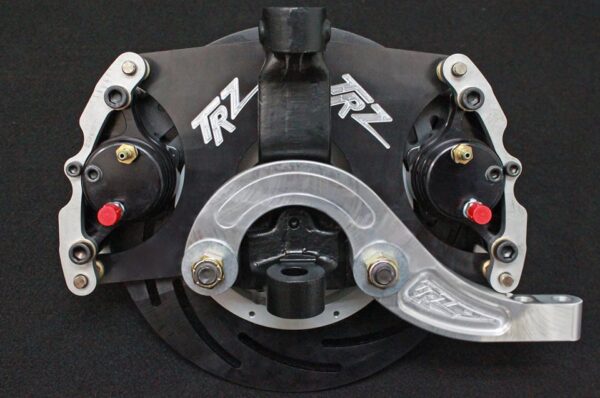

- TRZ 1.5″ Drop Chrome-Moly – Accepts Hub Style Brakes (325-xx) – GM Vehicles
- TRZ Billet – Accepts Hub Style and Spindle Mount Brakes (326-xx) – GM Vehicles, Ford Mustangs
- TRZ Billet – Accepts Stock-Type Brakes / NOT FACTORY (328-xx) – Ford Mustangs, GM A/F/X, G-Body / S10
Hub Mount Choices:
Strange Pro Series H/D Hub Mount:
- Drag Race Front Steel Brake Kits with Single Piece 11-1/4″ Forged Rotors
- Forged Aluminum 4-Piston Directional Calipers and Lightweight Hubs
- Includes 1/2 – 20 Threaded Wheel Studs (Lug Nuts are NOT included)
Strange Pro Series 2 Hub Mount:
- Drag Race Front Steel Brake Kits with 2 pc. 11-1/4″ Floating Rotors
- 2 pc. Floating Rotors eliminates pulling forces that can result in “cupped” rotors
- Forged Aluminum 4-Piston Directional Calipers and Lightweight Hubs
- Includes 1/2 – 20 Threaded Wheel Studs (Lug Nuts are NOT included)
Strange ‘Evolution 4’ Hub Mount:
- Drag Race Front Steel Brake Kits with 2 pc. 11-1/4″ Floating Rotors
- 2 pc. Stainless Steel Floating Rotors eliminates pulling forces that can result in “cupped” rotors
- BILLET Aluminum 4-Piston Directional Calipers and Lightweight Hubs
- Includes 1/2 – 20 Threaded Wheel Studs (Lug Nuts are NOT included)
Spindle Mount Choices (Strange GT Bearing Wheels) :
Strange Pro Series H/D Spindle Mount:
- Drag Race Front Steel Brake Kit with Single Piece 10″ Forged Rotors
- Large Bore Single Piston Floating Billet Aluminum Calipers
- No Bearings Included (Bearings are provided with wheels)
Strange Pro Series 2 Spindle Mount:
- Drag Race Front Steel Brake Kit with 2 pc. 10″ Floating Rotors
- 2 pc. Floating Rotors eliminates pulling forces that can result in “cupped” rotors
- Large Bore Single Piston Floating Billet Aluminum Calipers
- No Bearings Included (Bearings are provided with wheels)
Strange Evolution 1 Series Spindle Mount:
- Drag Race Front Brake Kit with Stainless Steel 11″ Floating Rotors
- Unique Aero Slot designed 2 piece SS Rotors reduces rotating weight and promotes even heat dissipation
- Large Bore Billet Evolution Single Piston Calipers
- No Bearings Included (Bearings are provided with wheels)
Additional information
| Weight | 33 lbs |
|---|---|
| Dimensions | 17 × 13 × 13 in |
| Vehicle Type | '63-'64 Corvette, '65-'68 Corvette, '69-'82 Corvette, C4 Corvette, C5/C6 Corvette, C7 Corvette, 64-72 Chevelle (A-Body), 67-69 Camaro/Firebird & 68-74 Nova, 70-78 Camaro / Firebird and 75-78 Nova, 79-81 Camaro / Firebird and 79 Nova, 82-92 Camaro / Firebird, 93-02 Camaro / Firebird, 2010-2015 Camaro, 2016-2024 Camaro, 77-96 Impala / Caprice (B-Body), 79-88 Malibu (G-Body), 82-02 S10 & Blazer (2WD), 79-93 Mustang, 94-04 Mustang, 05-14 Mustang, 15-22 Mustang, Strut Mount |
| Wheel Type | Hub Style (5-Lug), Spindle Mount (Strange GT Bearings) |
| Spindle Type | Factory / Disc, Factory / Drum, TRZ 1.5" Drop (All 325-xx), TRZ Billet (All 326-xx), TRZ Billet (All 328-xx), Strange GT Spindle Strut, AFCO / Santhuff Spindle Strut, 87-93 Mustang V8 Spindle |
| Brand / Type | Strange Evolution 1 Spindle Mount, Strange Pro Series H/D Hub Mount, Strange Pro Series 2 Hub Mount, Strange Evolution 4 Hub Mount, Strange Pro Series Spindle Mount, Strange Pro Series 2 Spindle Mount |
| Sort by Brand | Strange Engineering |
